TOE-MN/MA/MI
Product details
| Type | TOE-MN/MA/MI |
| Brand | Circutec (formerly Speck) |
| Description | Heat transfer pump with magnetic coupling |

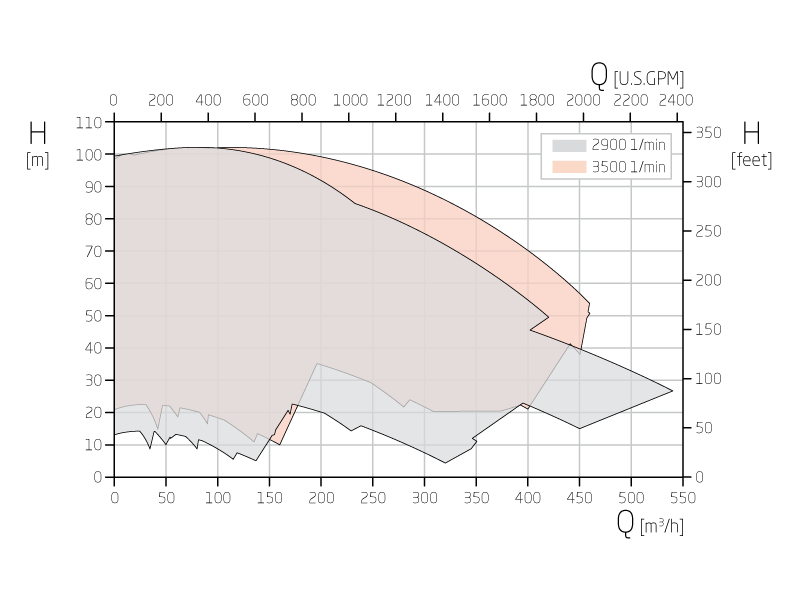

| Flow | Q (max) = 550 m³/h (50 Hz) Q (max) = 460 m³/h (60 Hz) |
| Head | H (max) = 103 m (50/60 Hz) |
| Medium | Thermalöl max. -40 … 350 °C |
| Materials | Stainless steel Spheroidal cast iron |
| Shaft sealing | Magnetic coupling |
Applications
Advantage
- Interchangeable components across all series
- Same hydraulics for the series TOE-GN, GA, MN, and MA
- Same hydraulics for the series TOE-GI / MI
- Easy pumping of synthetic heat transfer fluids with low viscosities up to 350°C
- Hydrodynamically lubricated SiC plain bearing
